What Problems Do 3D Tiles Solve?

Massive 3D scenes — such as city models, infrastructure networks, and digital twins — are incredibly large and complex, often containing billions of polygons and vast amounts of data.

Traditional approaches require downloading entire datasets upfront, resulting in slow load times, excessive bandwidth use, and poor performance, especially on web and mobile devices.

Additionally, modern photogrammetry technologies (like LiDAR) offer highly detailed geometry and texture, which make it virtually impossible to load entire datasets in commodity hardware, laptops, and phones.

How Streaming Solves Real-Time 3D Challenges

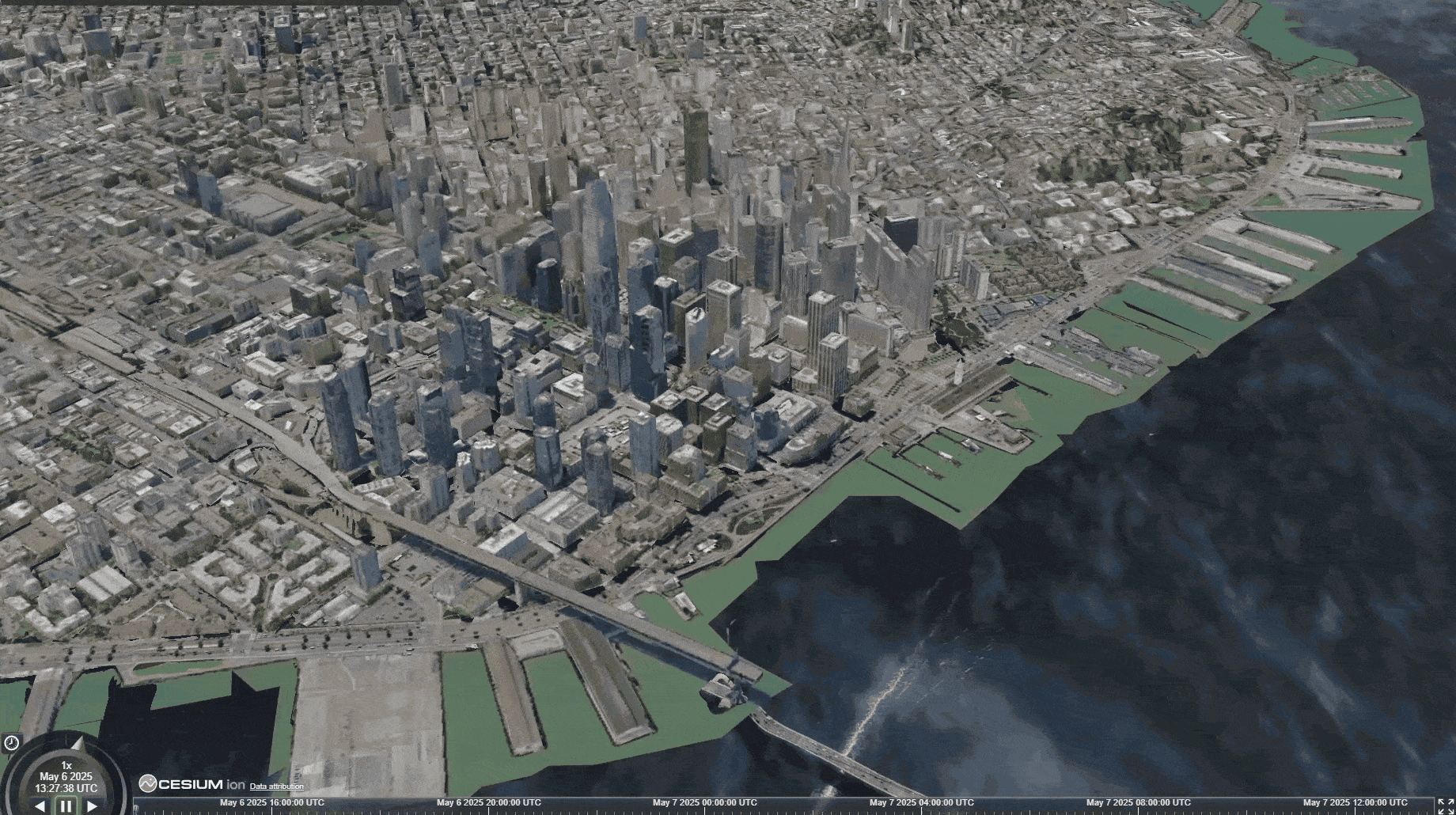

3D Tiles revolutionize massive 3D visualization by enabling dynamic streaming.

Instead of loading an entire dataset upfront, only the tiles visible in the user’s current view are streamed on demand. As users pan, zoom, or navigate, new tiles load progressively, while out-of-view files are unloaded, drastically reducing bandwidth and load times.

This streaming approach supports progressive refinement-low-resolution tiles appear first, followed by their higher-detail versions-ensuring smooth, real-time interaction even with enormous datasets. Optimized for web environments, streaming makes it possible to explore massive 3D scenes directly in browsers without heavy downloads or delays.

How 3D Tiling Improves Large-Scale 3D Performance

3D Tiles break massive 3D scenes into smaller, spatially organized tiles arranged hierarchically. Each tile represents a manageable chunk of data with multiple levels of detail (LOD). Distant tiles load simplified geometry, while nearby tiles load detailed models, balancing performance and visual quality. This tiling enables efficient spatial culling, where only visible tiles are rendered, which reduces processing and GPU load. The approach supports diverse data types, including meshes, point clouds, and BIM models. Preprocessing pipelines optimize tiles through compression and spatial indexing, ensuring fast streaming and smooth visualization.

3D Tiles break massive 3D scenes into smaller, spatially organized tiles arranged hierarchically. Each tile represents a manageable chunk of data and supports multiple levels of detail (LOD). Distant tiles load simplified geometry, while nearby tiles load detailed models, balancing performance and visual quality. This tiling enables efficient spatial culling, where only visible tiles are rendered, which reduces processing and GPU load. The approach supports diverse data types, including meshes, point clouds, and BIM models. Preprocessing pipelines optimize tiles through compression and spatial indexing, ensuring fast streaming and smooth visualization.

Under the Hood: 3D Tiles Internals

At its core, 3D Tiles uses a JSON-based tileset that describes the hierarchical structure and metadata of the scene. Tiles themselves contain binary data formats such as b3dm (batched 3D models), i3dm (instanced models), and pnts (point clouds). Each tile includes bounding volumes for efficient detail transitions. The format supports extensions for materials, lighting, and metadata, enabling rich and flexible visualizations. Tiles are typically hosted on web servers or CDNs, allowing fast, global access. Client-side engines like CesiumJS handle dynamic tile loading, caching, and rendering for a seamless user experience.

CesiumJS and Cesium ion: The Ecosystem

CesiumJS is a leading open-source 3D geospatial engine that pioneered support for 3D Tiles, enabling efficient streaming, level of detail management, and high-performance rendering directly in web browsers. Cesium ion is Cesium’s cloud platform that processes raw 3D data into optimized 3D Tiles, hosts tilesets on a global CDN, and provides easy tools for uploading, styling, and streaming massive 3D models. Together, CesiumJS and Cesium ion form a powerful ecosystem empowering developers to build scalable, interactive 3D applications with minimal infrastructure overhead. Continuous innovation and community support have made 3D Tiles widely accessible and practical for real-world projects.

The Future of 3D Tiles in Geospatial Innovation

The future of 3D Tiles is bright as demand grows for real-time, high-fidelity 3D data in smart cities, AR/VR, autonomous systems, and digital twins. Ongoing advancements aim to improve streaming efficiency, tile compression, and support for richer materials and semantic metadata. Integration with AI and machine learning will enable smarter data processing and scene understanding. The open ecosystem continues to expand, fostering interoperability and innovation. Enhanced collaboration and real-time updates will make 3D Tiles even more powerful for dynamic, large-scale 3D applications. Ultimately, 3D Tiles will remain foundational to the next generation of immersive spatial computing.

---
